the workflow
1
You are ready to create your first products within minutes. All of the necessary tools and safety gear for getting your machine operational are included.
2
The Machine is set up stand-alone in a well ventilated and dry room. It is easily movable with casters from one place to the other.
3
For an ideal workflow we suggest a well ventilated room, a space of 3-4 m².
4
Additionally we recommend using the plasticpreneur fume extractor to extract and filter the air in the working area.
getting started
110 V | 230 V | 400 V
DGMK2
desktop granulator
The desktop plastic granulator which grinds plastic into small flakes.
The plasticpreneur desktop granulator is the perfect choice to showcase the grinding process in a wide range of applications and prepares plastic waste for injection moulding or extrusion processing.
List price
230 V /110V: 6,590 € (excl. VAT)
400 V: 5,890 € (excl. VAT)
Included: tools & safety gear set
EXPLORE
experience and showcase the recycling process hands-on
CREATE
fast and cost effective way to create prototypes
MANUFACTURE
small batch to series production of tens of thousands of units
DGMK2
machine
features
Developed in cooperation with one of the leading manufacturers of plastic granulators in Central Europe, with decades of expertise.
Stand-alone and movable as desktop version
Improved ‘pull–in’ action of the rotor for bulky parts and sprues.
Replaceable and regrindable cutting knives.
1
2
3
4
230V
DGMK2 - desktop granulator
standout qualities
CERTIFIED
CE/UKCA-certified & third party approved
EFFICIENT
energy efficient & optimised performance
RELIABLE
industrial components & maintenance friendly
WORKFLOW
pre-assembled & ready to use within minutes
110V | 230V | 400V
DGMK2 - desktop granulator
technical
features
DGMK2- Desktop granulator 110 V:
Electric: 100-120 V, 50-60 Hz
Power consumption: 750 W, 6.8 A
DGMK2- Desktop granulator 230 V:Electric: 200-240 V, 50-60 Hz
Power consumption: 750 W, 3.2 A
DGMK2- Desktop granulator 400 V:
Electric: 380-415 V, 50-60 Hz
Power consumption: 750 W, 1.9 A
Plug Types
Type F (EU), Type G (GBR), Type B – Adapter (USA, CAN, JPN)
Dimensions: 58 x 34 x 68 cm (L x W x H)
Weight: 44 kg
Shipping dimensions: 80 x 60 x 55 cm (L x W x H)
Shipping weight: 56 kg (including accessories kit)
Packaging: half pallet with reusable plastic box and integrated clamping systemCE, UKCA
EG-Maschinenrichtlinie (2006/42/EG)
DIN EN 12012-1: 2018-11DIN EN 60204-1: 2019-06
DIN EN ISO 12100: 2011-03
DIN EN ISO 13850: 2016-05DIN EN ISO 13857: 2020-04
Setup: stand alone on a desk (desk not included)
Hopper opening: 70 x 110 mm
max. wall thickness of plastic parts to be shredded: 6 mm
Rotor diameter: 90 mm
Rotor knives: 9 pcs
Stator knives: 2 pcs
Sieve/flake size: 4 mm
Output: ca. 5-8 kg/h
Noise no-load operation: 63 dB
Noise granulating polyolefins: < 70 dB
Noise granulating Acryl or PC: < 75 dB
Customs tariff number: HS84778091
DGMK2 - desktop granulator
distinctive features
cutting
chamber box
custom, EU-made, hardened components within the cutting chamber reduce wear from abrasive materials
stand-alone & portable
designed to be placed on a desk and easy to transport with carrying handles.
quick release
levers
for a safe and fast workflow, transportation and maintenance.
viewing
windows
the compact design enables universal applications on small spaces.
more destinctive features
< 4mm with low dust content due to optimised rotor design.
Within the cutting chamber reduces wear from abrasive materials.
Guarantee long-term use and durability.
For long lasting and sustainable use.
Lightweight, rigid and self-supporting structure with a unique design.
For safe shipping and transport worldwide. Heavy duty velcro fastener strips hold the DGMK2 in place and allow a smooth and reusable packing and unpacking process.
the grinding process

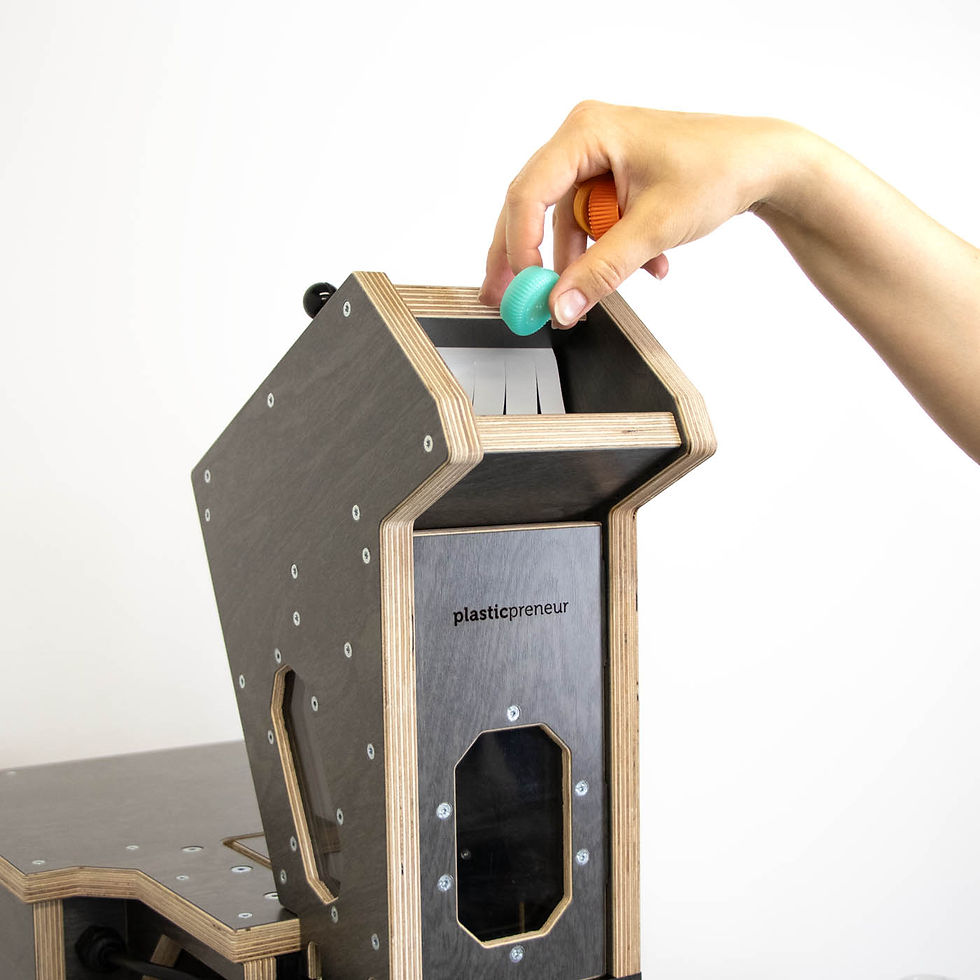

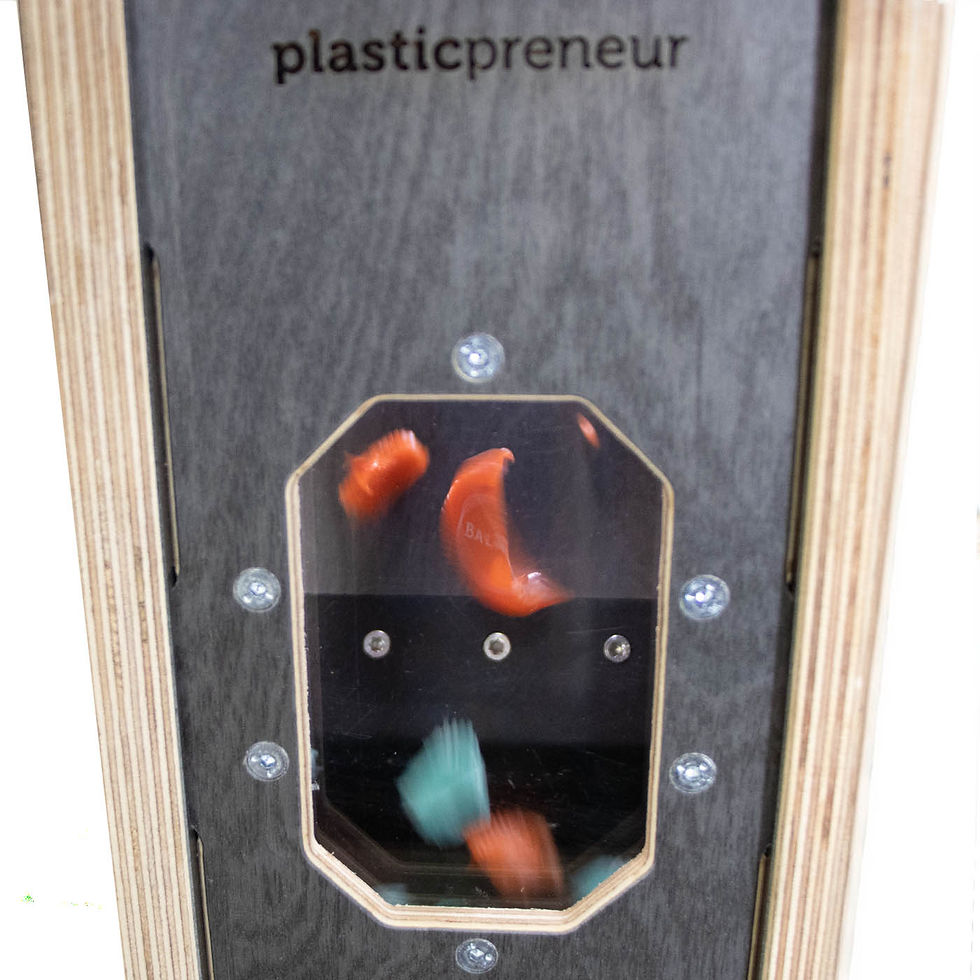

Washed and sorted plastic is fed into the hopper and enters the cutting box. Blades on a motor driven rotor, grind the plastic into small flakes. Through watching windows this process can be observed.
The grinding process takes place between the rotating rotor blades and the stationary stator blades. The cutting gap size and the cutting geometry of the rotor and stator knives can be adjusted.

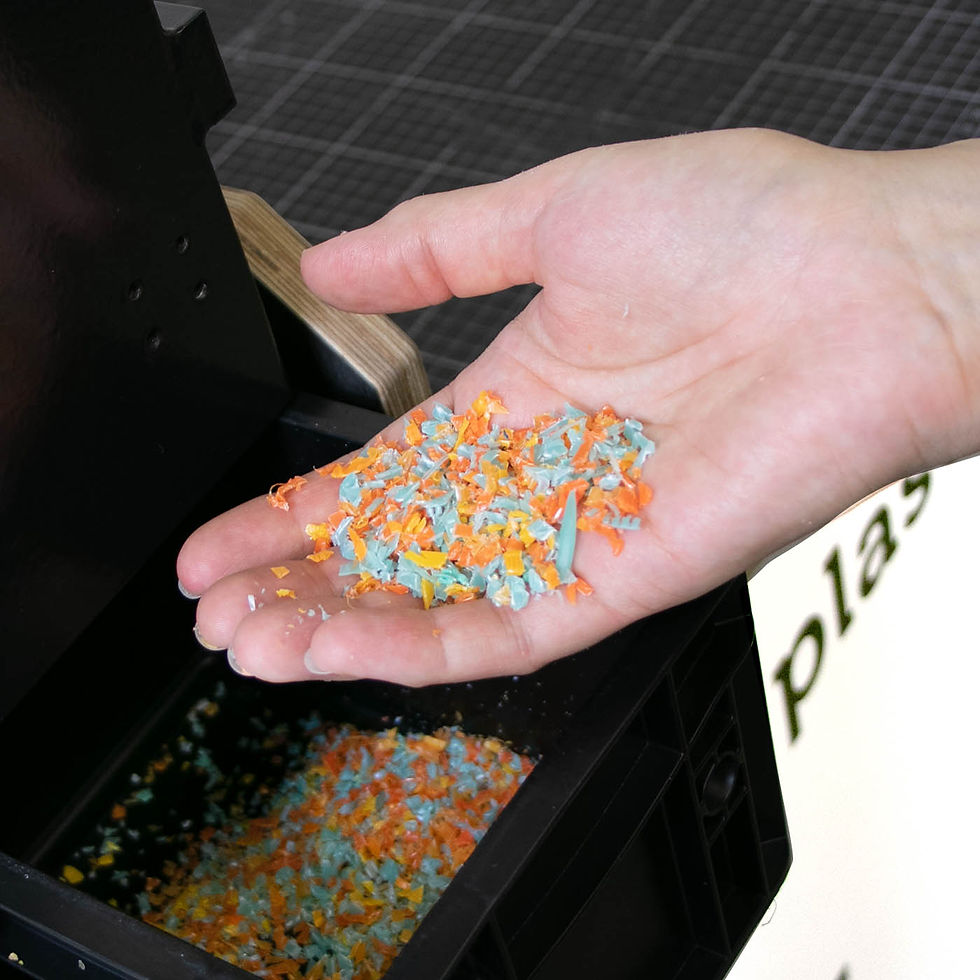

After passing through an exchangeable sieve, the flakes are collected in a box and are ready to be processed further in an injection moulding machine or extruder. The sieve size determines the flake size.
Larger plastic objects need to be pre cut to fit into the hopper.
Recommended for rigid polyolefins
Compatible with: flexible material such as TPU
Ability to test other materials such as biodegradable etc.
We assume no liability if materials other than those recommended are used. For other materials (e.g. biodegradable plastics) if applicable we can provide information as well as material tests.
Not recommended for use: stretch film, foamed materials
Never to use: wood, metall, electronics, etc.
Plastic may be pre-cut to fit into the hopper. E.g. with tin snips, saw, etc.
An accessory kit consisting of all needed parts to ensure safe and easy set up, as well as for maintenance are included.
This includes:
-
Tool & safety gear set including
-
Ring spanner, flat screwdriver, tin snips
-
Gloves, safety glasses, ear protection
-
-
To safely operate the machine: gloves, safety glasses, and optional ear protection are needed. Depending on the input material the dB varies. Therefore, we recommend using ear protection, especially if working for a longer period of time.
We ship worldwide.
The machine comes in tailor made packaging in a reusable plastic box, with integrated heavy duty velcro fastener strips, on a half pallet, or if ordered in a set together with other machines, via freight-forwarding on a pallet.
