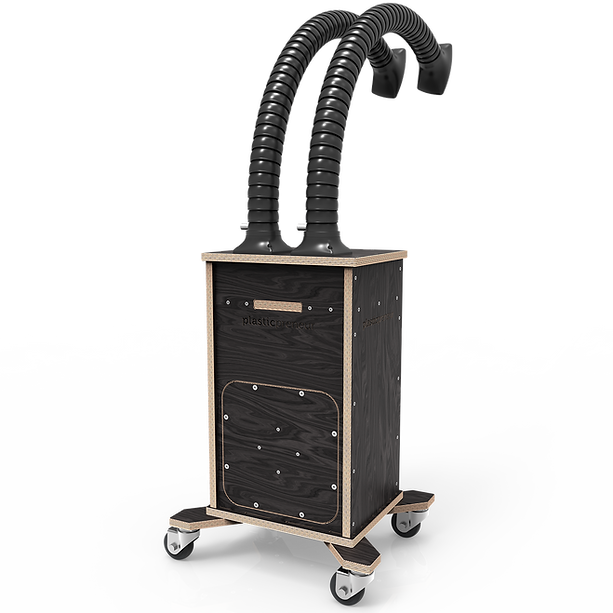

FEMK2
fume extractor
Fume extractor with carbon filter to extract and filter the fumes during the injection and extrusion process.
The plasticpreneur fume extractor is a recommended, additional safety option to use when working with the injection moulding machine or extruder.
List price
1,990 € (excl. VAT)
EXPLORE
experience and showcase the recycling process hands-on
CREATE
fast and cost effective way to create prototypes
MANUFACTURE
small batch to series production of tens of thousands of units
FEMK2
machine
features
Stand-alone and movable with casters
Adjustable airflow
Lightweight and robust design
EU-made, high quality components
1
2
3
4
230V
FEMK2 - fume extractor
standout qualities
CERTIFIED
CE/UKCA-certified & third party approved
EFFICIENT
energy efficient & optimised performance
RELIABLE
industrial components & maintenance friendly
WORKFLOW
pre-assembled & ready to use within minutes
FEMK2 - fume extractor
technical
features
Electric: 200-240 V, 50-60 Hz
Power consumption: 50 W
Plug Types
Type F (EU), Type G (GBR), Type B (USA, CAN, JPN)
Dimensions: 52 x 44 x 78 cm
(L x W x H without tube)
Tube length: 120 cmWeight: 24 kg
Shipping dimensions: 70 x 50 x 50 cm (L x W x H)
Shipping weight: 27 kg
Packaging: cardboard parcel
CE/UKCA
Setup: stand-alone and movable with casters
Airflow: 350 m³/hNoise: <30 dB
Customs tariff number: HS84146000
FEMK2 - fume extractor
distinctive features
flexible
tubes
to point exactly to the point of extraction and adjustable valve to manage the air stream.
release into
the room
the filtered air is released directly back into the room. No need for additional hoses.
hour
counter
to measure the operating time and replacement of the filter
Simple
access
to replace and maintain the filter.
the workflow
1
The flexible tubes with an adjustable airflow are placed to the hopper and nozzle of the injection moulding machine or the extruder. Air is extracted, cleaned in a carbon activated filter and released back into the room.
2
The carbon activated filter needs to be replaced after 1000 operating hours. An integrated hour-counter and the simple design for accessing the filter box allow simple and fast exchanging.
getting started
With an airflow of 350 m³/h the air in a room up to 140 m² (2,5 m height) can be extracted and filtered per hour. The smaller the room, the faster and better the extraction and filtration. The fumes therefore do not spread throughout the room.
Depending on the used material and/or additives we recommend using additionally a mask (e.g. PS, ABS, PC, PMMA)Recommended for rigid PP or HDPE
Ideal for bottle caps.
Never to use: wood, metall, electronics, etc.
Plastic may be pre-cut to fit into the hopper. E.g. with tin snips, saw, etc.
We ship worldwide.
The machine comes in tailor made packaging via DHL Express parcel shipping, or if ordered in a set with other machines, via freight-forwarding on a pallet.
